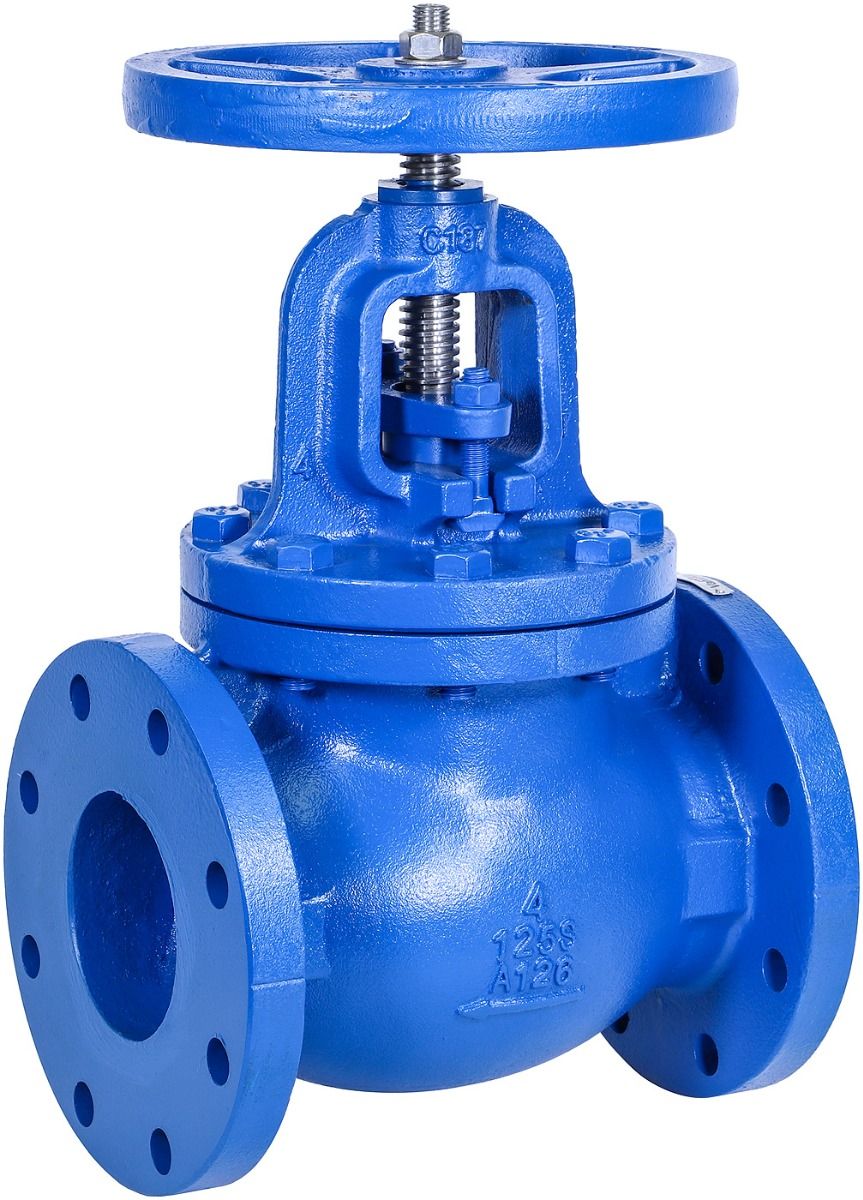

4" Cast Iron Globe Valve - Metal Seated
was
$960.45
Special Price
$602.38
Cast iron globe valve with cast bronze seat.
| Size | 4" |
|---|---|
| Design Standard | MSS SP-85 |
| Connections | Flanged / ANSI 125 |
| Operator | Handwheel |
| Pressure Rating | 200 PSI @ -20° to 150° F 125 PSI @ 450° F |
| Length (End to End) | 11.5" |
| Weight | 104 lbs |
Availability:
In stock
SKU
VK-GB-304
4" Cast Iron Globe Valve - Metal Seated
Features:
- Suitable for Water, Oil & Steam
- Flanges Conform to ANSI B16.1
Material:
- Body: Cast Iron
- Bonnet: Cast Iron
- Wedge: Cast Iron
- Stem: Stainless Steel SS420
- Body Seat Ring: Bronze B62
- Disc Seat Ring: Bronze B62
- Gasket: Graphite
Download Specification Sheet
Dimensions - Inches
| Size | L | D | D1 | B | n-d | Do | H1 | H2 |
|---|---|---|---|---|---|---|---|---|
| 2" | 8 | 6 | 4.8 | 0.6 | 4-19 (3/4") | 7 | 10.1 | 10.8 |
| 3" | 9.5 | 7.5 | 6 | 0.8 | 4-19 (3/4") | 7.9 | 12.7 | 13.9 |
| 4" | 11.5 | 9 | 7.5 | 0.9 | 8-19 (3/4") | 10 | 14.4 | 15.9 |
| 6" | 14 | 11 | 9.5 | 1 | 8-22 (7/8") | 11.8 | 18.6 | 20.8 |
| 8" | 19.5 | 13.5 | 11.8 | 1.1 | 8-22 (7/8") | 13.7 | 21 | 23.8 |
Dimensions - Millimeters
| Size | L | D | D1 | B | n-d | Do | H1 | H2 |
|---|---|---|---|---|---|---|---|---|
| 2" | 203 | 152 | 121 | 15.9 | 4-19 (3/4") | 178 | 256 | 274 |
| 3" | 241 | 190 | 153 | 19.1 | 4-19 (3/4") | 200 | 323 | 353 |
| 4" | 292 | 229 | 191 | 23.9 | 8-19 (3/4") | 254 | 365 | 403 |
| 6" | 356 | 279 | 242 | 25.4 | 8-22 (7/8") | 300 | 472 | 529 |
| 8" | 495 | 343 | 299 | 28.6 | 8-22 (7/8") | 348 | 533 | 605 |
