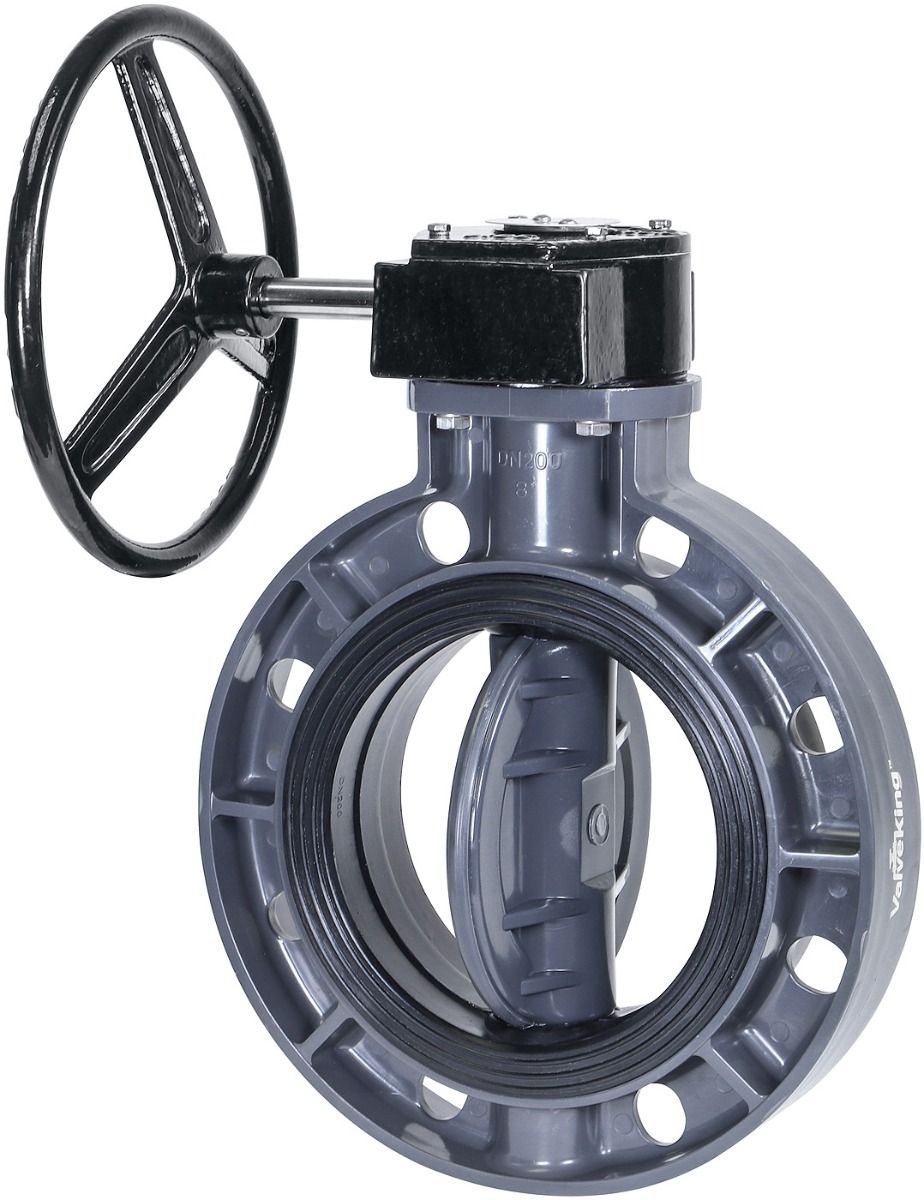

8" PVC Butterfly Valve Wafer Style - EPDM Seat, Gear Operated

8" PVC Butterfly Valve Wafer Style - EPDM Seat, Gear Operated

The butterfly valve is a rotary valve in which a disk-shaped seating element is rotated 90° to open or close the flow passage. Can be left partially open or closed for flow throttling. Butterfly valves cannot be used where a non obstructed full opening is needed. Needs to be installed with flanges. No need for gaskets since they already have a rubber seal.

Features:

• Excellent corrosion resistance
• Gearbox operator is self-locking in any position for throttle control
• Does not require flange gaskets thanks to EPDM seat

Material:

• Body: uPVC
• Disc: uPVC
• Seat: EPDM
• Stem: Carbon Steel
• Handwheel: Painted Cast Iron

Download Specification Sheet

Dimensions - Inches

Dimensions - Millimeters
