4" Single Union PVC Ball Valve Slip/Weld
was
$194.06
Special Price
$121.54
4" Single Union PVC Ball Valve Slip/Weld
Availability:
In stock
SKU
RK1BV4O
4" Single Union PVC Ball Valve Slip/Weld
Download Specification Sheet

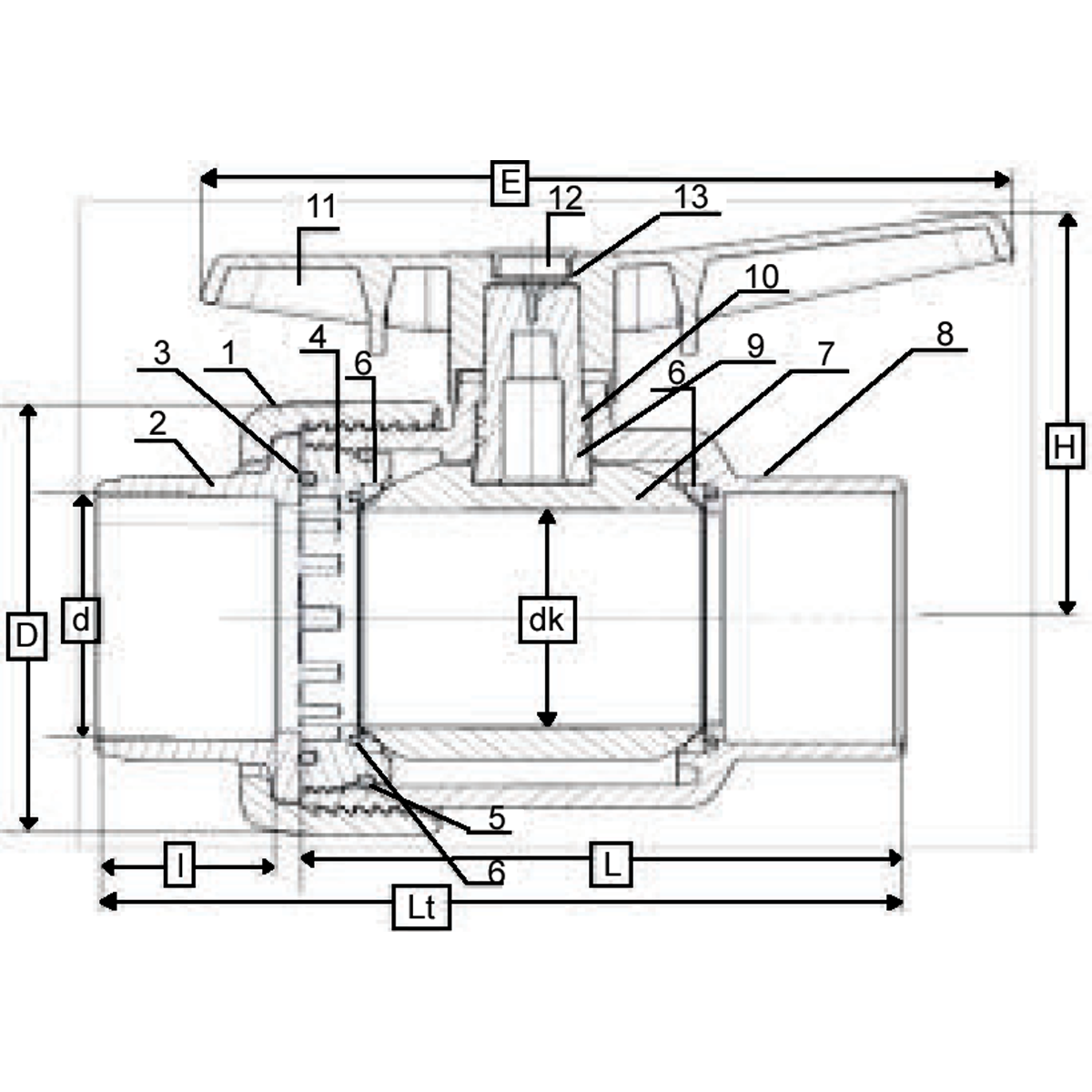

Dimensions - Inches
| Size | ASTM (d) | dk | D | l | L | Lt | E | H |
|---|---|---|---|---|---|---|---|---|
| 4" | 4.5 | 3.9 | 7.8 | 2.4 | 7.9 | 10.6 | 10.6 | 7.3 |
Dimensions - Millimeters
| Size | ASTM (d) | dk | D | l | L | Lt | E | H |
|---|---|---|---|---|---|---|---|---|
| 4" | 114.3 | 98 | 197 | 60 | 200 | 268 | 270 | 186 |
Spare Parts Available:
- RK1BV4O TPU seals: RK1BV4O-TPU
- RK1BV4O Union O-ring: RK1BV4O-ORING
