1" Single Union PVC Ball Valve FNPT
was
$18.26
Special Price
$8.33

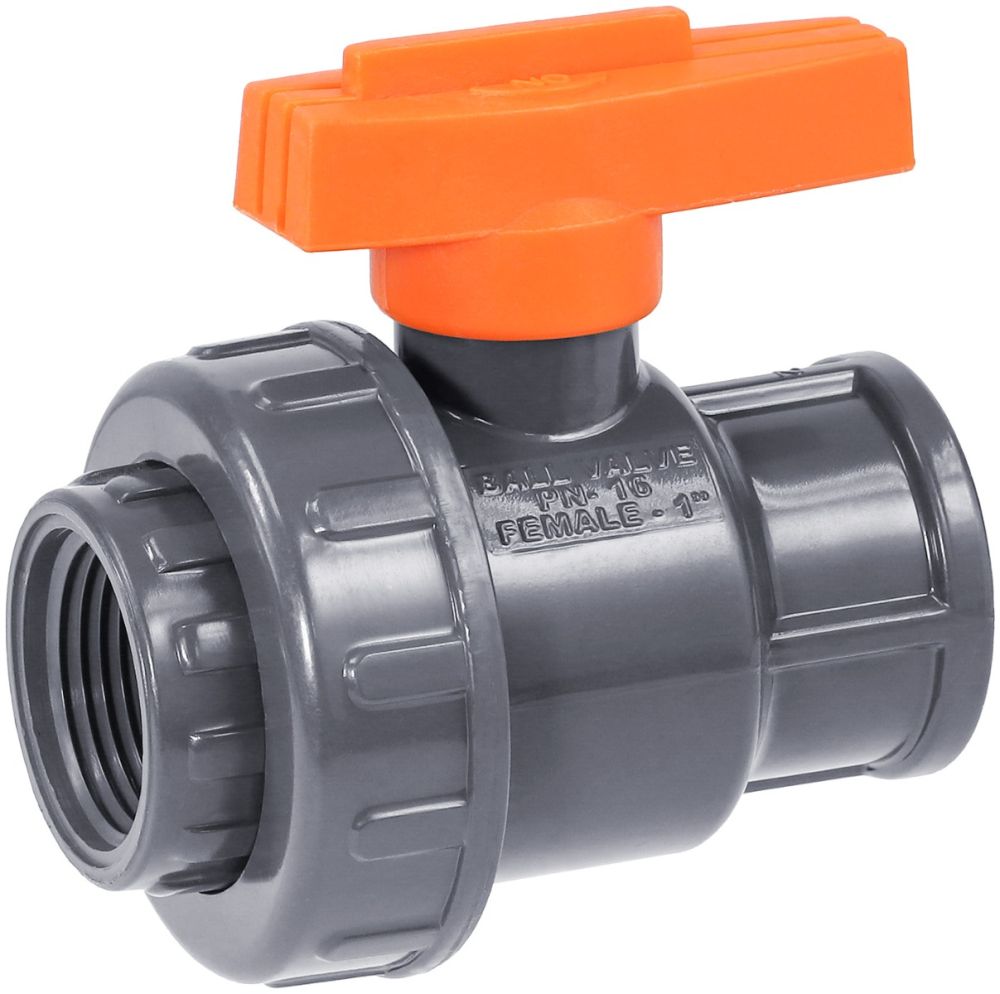

1" Single Union PVC Ball Valve FNPT Orange Handle
| Inlet / Outlet | 1" FNPT |
|---|---|
| Maximum Pressure | 230 PSI |
Availability:
In stock
SKU
RK1BV1OT
1" Single Union PVC Ball Valve FNPT Orange Handle
Features:
- Quarter-turn handle operated ball valve
- TPE seals with O-ring gives cushioning effect that ensures leakage free and low fixed torque
- Union nut load does not transfer onto ball
- Chemical and corrosion resistant, color UV stabilized
Download Specification Sheet
Dimensions - Inches
| Size | Threads Per Inch | dk | D | l | L | Lt | E | H |
|---|---|---|---|---|---|---|---|---|
| 3/4" | 14 | 0.8 | 2.4 | 0.7 | 2.5 | 3.3 | 2.4 | 2.2 |
| 1" | 11.5 | 0.9 | 2.7 | 0.9 | 2.9 | 3.7 | 2.8 | 2.6 |
Dimensions - Millimeters
| Size | Threads Per Inch | dk | D | l | L | Lt | E | H |
|---|---|---|---|---|---|---|---|---|
| 3/4" | 14 | 20 | 60 | 18 | 63.5 | 82.6 | 60.8 | 56 |
| 1" | 11.5 | 24 | 69 | 21.8 | 73 | 94 | 71 | 66 |
Spare Parts Available:
- RKBV1O (T) TPU seals (Fits all IrrigationKing 1" PVC ball Valves): RKBV1O-TPU
- RKBV1O (T) Union Oring: RKBV1O-ORING
