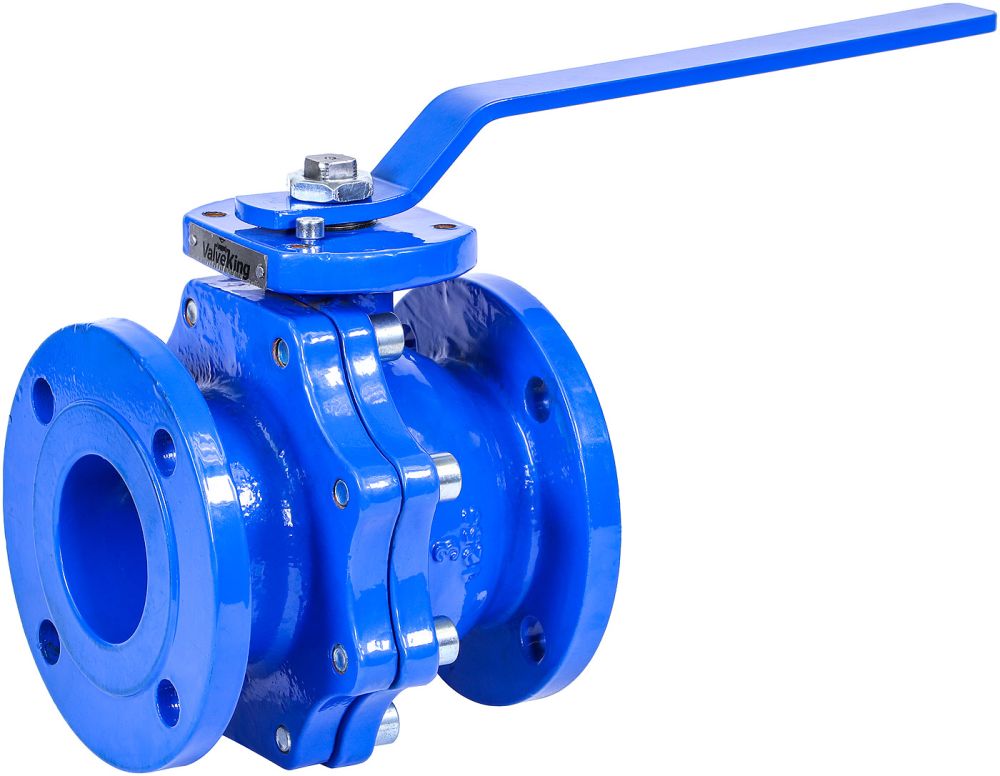

3" Cast Iron Ball Valve, Flanged, SS304 Ball
was
$519.47
Special Price
$337.15
Cast iron flanged ball valve with stainless steel ball and PTFE seat, gasket, and packing.
| Size | 3" |
|---|---|
| Connections | Flanged / ANSI 125 |
| Length (End to End) | 8" |
| Weight | 45 lbs |
Availability:
In stock
SKU
VK-BV-303F
3" Cast Iron Ball Valve, Flanged, SS304 Ball
Features:
- Fusion-Bonded Epoxy Coating Inside & Outside
- Flanges Conform to ANSI B16.1
Material:
- Body: Cast Iron
- Bonnet: Cast Iron
- Ball: Stainless Steel SS304
- Seat & Gasket: PTFE
- Stem: Stainless Steel SS304
- Stem Packing: PTFE
- Lever: Ductile Iron
- Paint: Fusion-Bonded Epoxy
Download Specification Sheet
Dimensions - Inches
| Size | d | L | D | C | R | b | N-h | f | H | W | A | 4-m |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3" | 3.1 | 8 | 7.5 | 6 | 5 | 0.8 | 4-19 (3/4") | 0.1 | 8.8 | 13.8 | 0.8 | M10 |
| 4" | 3.9 | 9 | 9 | 7.5 | 6.2 | 0.9 | 8-19 (3/4") | 0.1 | 8.8 | 15.8 | 0.9 | M10 |
| 6" | 5.9 | 15.5 | 11 | 9.5 | 8.5 | 1 | 8-22 (7/8") | 0.1 | 10.8 | 23.6 | 1.1 | M16 |
Dimensions - Millimeters
| Size | d | L | D | C | R | b | N-h | f | H | W | A | 4-m |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3" | 80 | 203 | 191 | 153 | 127 | 19.1 | 4-19 (3/4") | 1.6 | 222 | 350 | 19 | M10 |
| 4" | 100 | 229 | 229 | 191 | 157 | 23.9 | 8-19 (3/4") | 1.6 | 222 | 400 | 22 | M10 |
| 6" | 150 | 394 | 279 | 242 | 216 | 25.4 | 8-22 (7/8") | 1.6 | 275 | 600 | 27 | M16 |
