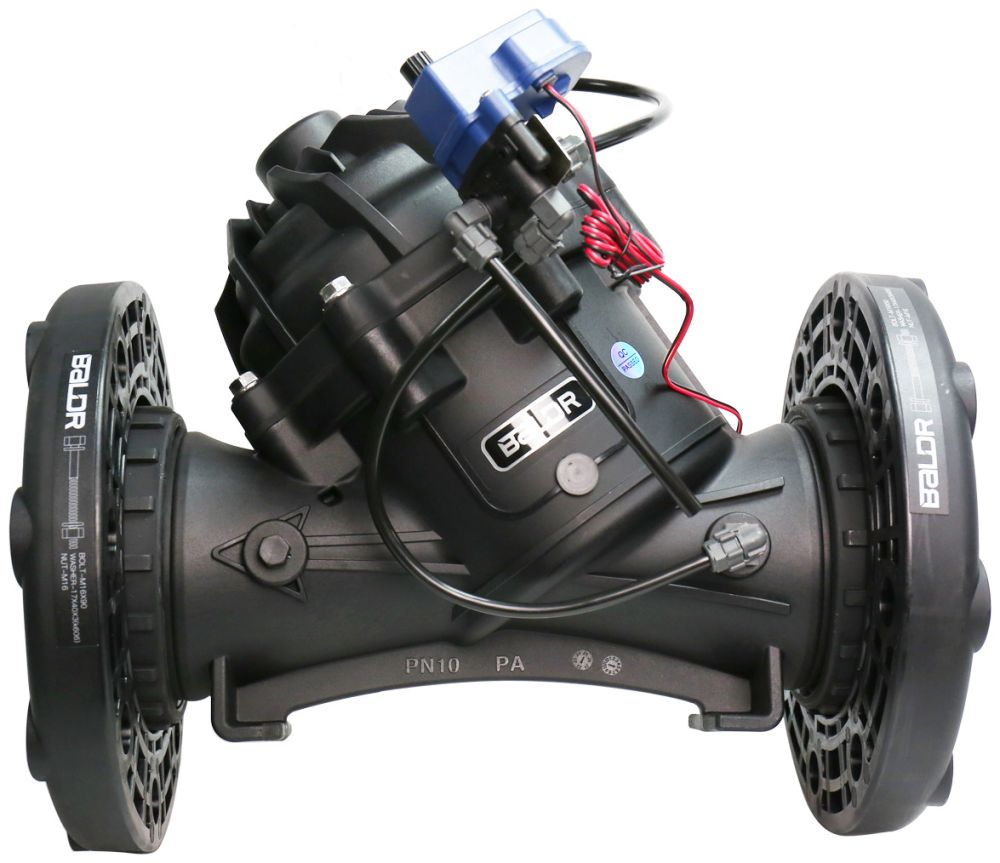

BALDR 6" Control Valve with 24V AC Solenoid - Flange
was
$1,152.44
Special Price
$639.99
Hydraulic control valve with 24 volt AC solenoid control. This hydraulically operated, diaphragm-actuated control valve is opened and closed electronically and easily connects to any compatible AC irrigation contoller. It automatically closes upon loss of control signal.
Easily converts to DC power by swapping bolt-on solenoid with a 9-24V DC latching solenoid (sold separately). No replumbing required.
| Size | 6" |
|---|---|
| Connection | Flange |
| Maximum Operating Pressure | 145 PSI |
| Minimum Pressure | 5 PSI |
| Max. Tempurature | 140° F (60° F=C) |
Availability:
In stock
SKU
BV60ESC
How it Works
Line pressure [1] is applied to the Control Chamber [2] through the held open Solenoid Valve. This creates superior closing force that moves the Diaphragm Assembly [4] to a closed position. Upon pressure rise command, the Solenoid Valve [3] switches, releasing pressure from the control chamber and thereby opening the Main Valve. The Solenoid Valve [3] also features local manual opening and closing.
Features:
- Hydraulically Controlled, Normally Closed Valve
- Line pressure driven
- Closes upon control failure
- Amplifies and relays weak remote command
- Engineered Plastic Valve with Industrial Grade Design
- Highly durable, chemical and cavitation resistant
- No internal bolts and nuts
- Simple in-line inspection and service
- Unitized Flexible Super Travel (FST) Diaphragm and Guided Plug
- Smooth closing
- Requires low opening and actuation pressure
- Prevents diaphragm erosion and distortion
- High Flow "Y" Valve Body with "Look Through" Design
- Ultra-high flow capacity and low pressure loss
Material:
- Body, Cover and Plug: Glass-Filled Nylon
- Diaphragm: NR
- Seals: NR
- Spring: Stainless Steel
- Cover Bolts: Stainless Steel
- Control Accessories: Nylon
- Tubing and Fittings: PE
Head Loss
Dimensions - Inches
| L | W | H |
|---|---|---|
| 17.2 | 12.6 | 15.8 |
