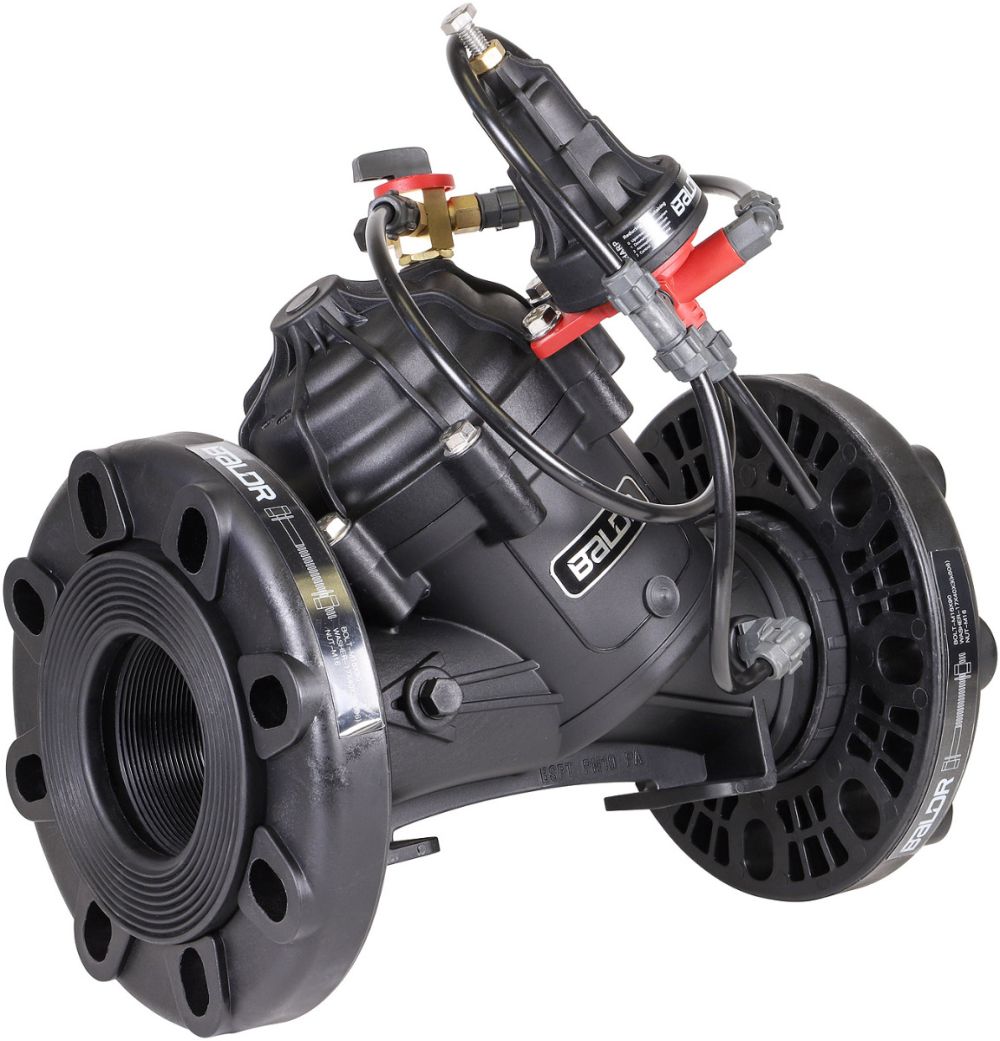

BALDR 4" Manual Pressure Sustaining Valve - Flange
was
$562.54
Special Price
$332.83
Pressure sustaining control valve with manual control. This hydraulically operated, diaphragm-actuated pressure sustaining valve sustains minimum preset upstream (back) pressure and opens fully when line pressure is in excess of setting.
| Size | 4" |
|---|---|
| Connection | Flange |
| Maximum Operating Pressure | 145 PSI |
| Minimum Pressure | 5 PSI |
| Max. Tempurature | 140° F (60° F=C) |
Availability:
In stock
SKU
BV40PS
How it Works
The pressure sustaining pilot valve [1] causes the main valve to be slowly closed when the upstream pressure [P1] is lower than the minimum preset pressure, and fully opens when [P1] is in excess of setting. Local manual shut-off of the valve can be performed with the manual Shuttle Valve [2].
Features:
- Line Pressure Driven, Hydraulically Controlled
- Prioritizes pressure zones
- Controls system fill-up
- Opens fully upon line pressure rise
- Engineered Plastic Valve with Industrial Grade Design
- Highly durable, chemical and cavitation resistant
- No internal bolts and nuts
- Simple in-line inspection and service
- Unitized Flexible Super Travel (FST) Diaphragm and Guided Plug
- Accurate and stable regulation with smooth closing
- Requires low opening and actuation pressure
- Prevents diaphragm erosion and distortion
- High Flow "Y" Valve Body with "Look Through" Design
- Ultra-high flow capacity and low pressure loss
Material:
- Body, Cover and Plug: Glass-Filled Nylon
- Diaphragm: NR
- Seals: NR
- Spring: Stainless Steel
- Cover Bolts: Stainless Steel
- Control Accessories: Nylon
- Tubing and Fittings: PE
Head Loss
Dimensions - Inches
| L | W | H |
|---|---|---|
| 12.6 | 11 | 12.6 |
