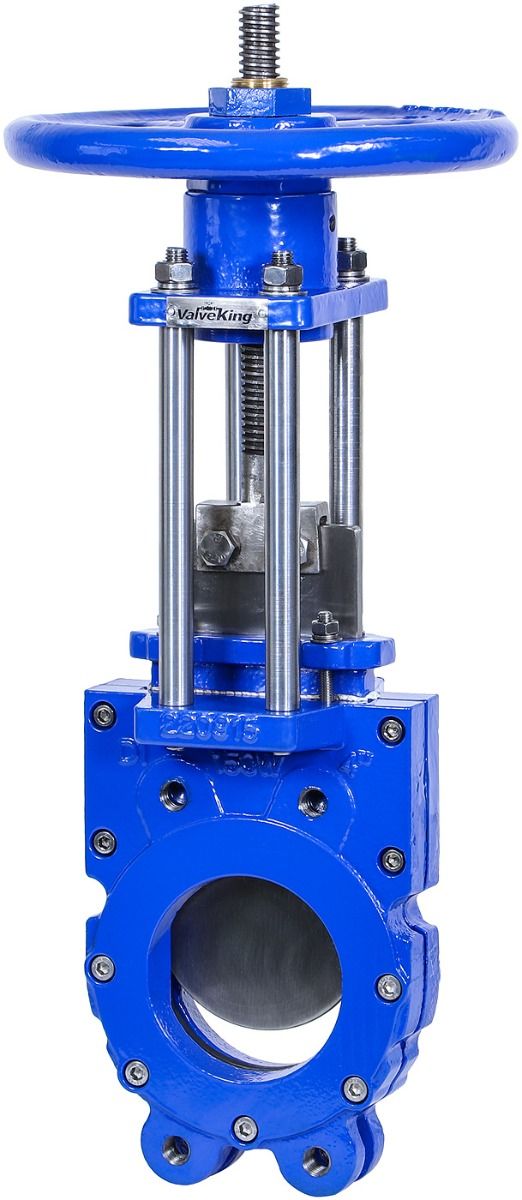

4" Ductile Iron Knife Gate Valve, 2-PC Body, Rising Stem, EPDM Seat
was
$1,109.43
Special Price
$566.17
Split body ductile iron wafer knife gate valve with EPDM seat.
| Size | 4" |
|---|---|
| Design Standard | MSS SP-81 |
| Stem | Rising Stem |
| Operator | Handwheel |
| Connections | Flange / ANSI 125 |
| Pressure Rating | 150 PSI |
| Temperature Rating | -4° to 185° F |
| Length (End to End) | 2" |
| Weight | 45 lbs |
Availability:
In stock
SKU
VK-KG-304
4" Ductile Iron Knife Gate Valve, 2-PC Body, Rising Stem, EPDM Seat
Features:
- Split Body Design
- Rising Stem
- EPDM Seat
Material:
- Body: Ductile Iron
- Stem: Stainless Steel SS420
- Knife: Stainless Steel SS304
- U-Ring: EPDM
- Paint: Fusion-Bonded Epoxy
Download Specification Sheet
Dimensions - Inches
| Size | DN | D | H | L | n-M | W | T |
|---|---|---|---|---|---|---|---|
| 2" | 1.9 | 4.8 | 13.3 | 1.9 | 4-5/8" | 7.1 | 0.5 |
| 3" | 3.1 | 6 | 15.8 | 2 | 4-5/8" | 7.9 | 0.6 |
| 4" | 3.9 | 7.5 | 18.4 | 2 | 8-5/8" | 9.8 | 0.6 |
| 6" | 5.9 | 9.5 | 24.9 | 2.3 | 8-3/4" | 11.8 | 0.7 |
| 8" | 7.9 | 11.8 | 29.3 | 2.8 | 8-3/4" | 13.8 | 0.7 |
| 10" | 9.8 | 14.3 | 37 | 2.8 | 12-7/8" | 15.8 | 0.7 |
| 12" | 11.8 | 17 | 42.8 | 3 | 12-7/8" | 19.7 | 0.7 |
Dimensions - Millimeters
| Size | DN | D | H | L | n-M | W | T |
|---|---|---|---|---|---|---|---|
| 2" | 50 | 120.5 | 337 | 48 | 4-5/8" | 180 | 12.5 |
| 3" | 80 | 152.5 | 400 | 51 | 4-5/8" | 200 | 16 |
| 4" | 100 | 190.5 | 466 | 51 | 8-5/8" | 250 | 16 |
| 6" | 150 | 241.5 | 633 | 57 | 8-3/4" | 300 | 17 |
| 8" | 200 | 298.5 | 744 | 70 | 8-3/4" | 350 | 18 |
| 10" | 250 | 362 | 940 | 70 | 12-7/8" | 400 | 18 |
| 12" | 300 | 432 | 1087 | 76 | 12-7/8" | 500 | 18 |
