8" Cast Iron Gate Valve - Metal Seated, NRS

Skip to the end of the images gallery

main product photo

Skip to the beginning of the images gallery

6" Cast Iron Gate Valve - Metal Seated, NRS

10" Cast Iron Gate Valve - Metal Seated, NRS

8" Cast Iron Gate Valve - Metal Seated, NRS

was $2,439.04 Special Price $1,647.90

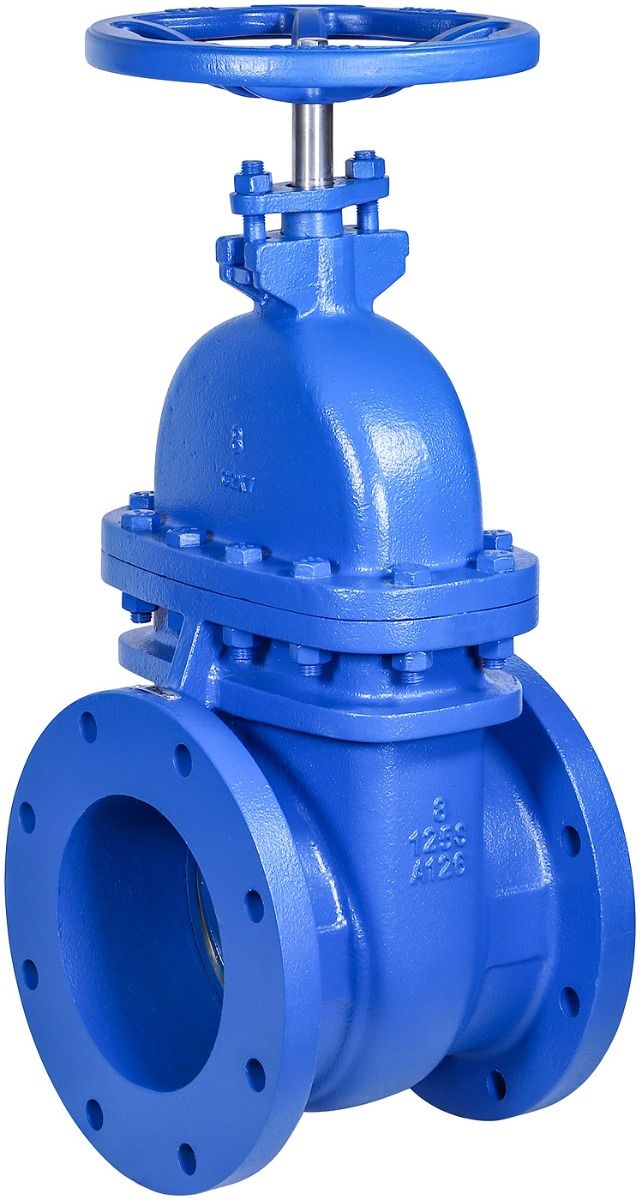

Cast iron gate valve with cast bronze seat and non-rising stem.

Size	8"
Design Standard	MSS SP-70
Stem	Non-Rising Stem
Operator	Handwheel
Connections	Flanged / ANSI 125
Length (End to End)	11.5"
Weight	234 lbs

Availability: In stock

SKU

VK-GT-608

8" Cast Iron Gate Valve - Metal Seated, NRS

Compatible with square nut adapter VK-SQN-6

Features:

Suitable for Water, Oil & Steam
Non-Rising Stem
Solid Wedge
Flanges Conform to ANSI B16.1

Material:

Body: Cast Iron
Bonnet: Cast Iron
Wedge: Cast Iron
Stem: Stainless Steel SS420
Body Seat Ring: Bronze B62
Disc Seat Ring: Bronze B62
Gasket & Packing: Graphite

Download Specification Sheet

Dimensions - Inches

Size	L	D	D1	n-d	B	Do	H
2"	7	6	4.8	4-19 (3/4")	0.6	7.1	9.4
3"	8	7.5	6	4-19 (3/4")	0.8	7.9	12.7
4"	9	9	7.5	8-19 (3/4")	0.9	10	14.4
6"	10.5	11	9.5	8-22 (7/8")	1	11.8	18.8
8"	11.5	13.5	11.8	8-22 (7/8")	1.1	11.8	23.1
10"	13	16	14.3	12-25 (1")	1.2	13.8	27.9
12"	14	19	17	12-25 (1")	1.3	15.8	31.1

Dimensions - Millimeters

Size	L	D	D1	n-d	B	Do	H
2"	177.8	152	121	4-19 (3/4")	15.9	180	240
3"	203	190	153	4-19 (3/4")	19.1	200	323
4"	229	229	191	8-19 (3/4")	23.9	254	365
6"	267	279	242	8-22 (7/8")	25.4	300	477
8"	292	343	299	8-22 (7/8")	28.6	300	585
10"	330	406	362	12-25 (1")	30.2	350	710
12"	356	483	432	12-25 (1")	31.8	400	789
