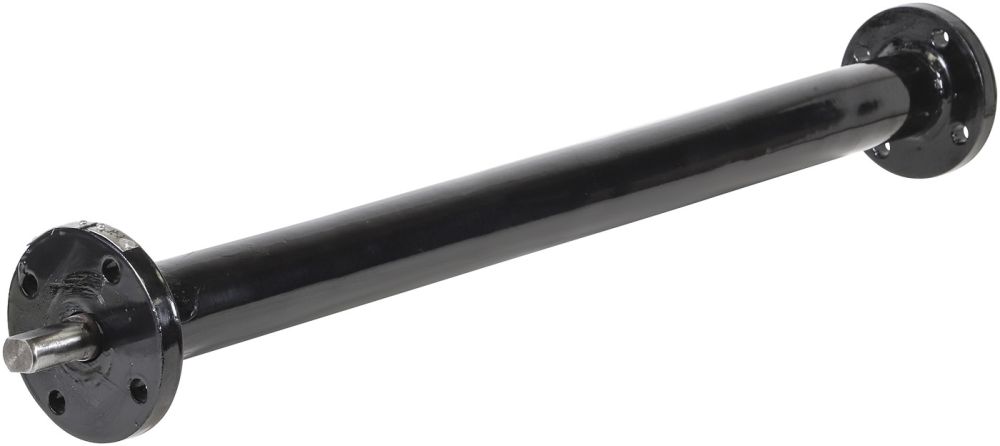

24" Stem Extension for 6" Butterfly Valves
was
$196.10
Special Price
$118.41
24" Stem Extension for 6" Butterfly Valves
Availability:
In stock
SKU
VK-EXT-24-6
24" Stem Extension for 6" Butterfly Valves
Dimensions - Inches
| Valve Size | A | ⌀Q | S | ⌀T | ⌀U | ⌀V |
|---|---|---|---|---|---|---|
| 2" & 3" | 24 | 0.5 | 0.4 | 2.8 | 3.6 | 0.4 |
| 36 | ||||||
| 48 | ||||||
| 60 | ||||||
| 4" | 24 | 0.6 | 0.5 | 2.8 | 3.6 | 0.4 |
| 36 | ||||||
| 48 | ||||||
| 60 | ||||||
| 6" | 24 | 0.8 | 0.6 | 2.8 | 3.6 | 0.4 |
| 36 | ||||||
| 48 | ||||||
| 60 | ||||||
| 8" | 24 | 0.9 | 0.7 | 4 | 4.9 | 0.4 |
| 36 | ||||||
| 48 | ||||||
| 60 | ||||||
| 10" | 24 | 1.1 | 0.9 | 4 | 4.9 | 0.4 |
| 36 | ||||||
| 48 | ||||||
| 60 | ||||||
| 12" | 24 | 1.3 | 0.9 | 4 | 4.9 | 0.4 |
| 36 | ||||||
| 48 | ||||||
| 60 |
