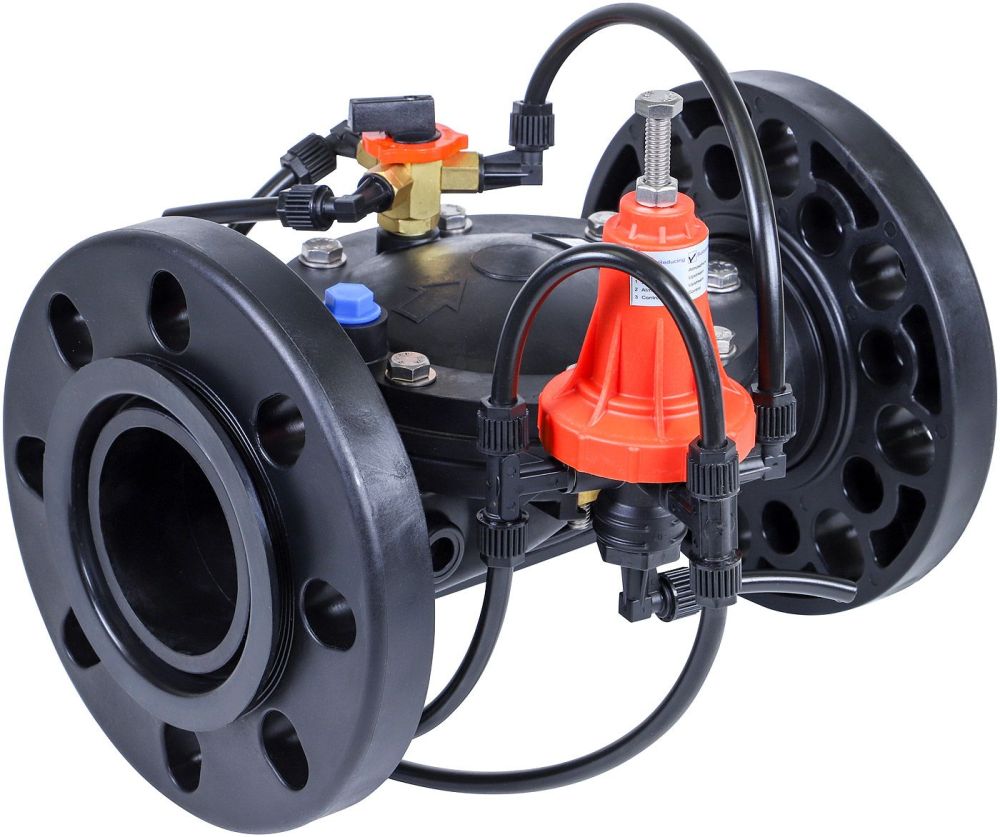

3" Pressure Sustaining and Relief Valve, 3-Way Pilot (7-78 PSI), Flanged
$304.52
Pressure sustaining valve installed in-line, sustains minimum back pressure controlled by a 3-way pilot. The spring loaded membrane of the pilot is sensitive to upstream pressure and opens the valve when the inlet pressure exceeds pilot set pressure. If upstream pressure is below the desired set pressure, the valve will be in closed position. The valve is factory set at 3 bar, which is 45 PSI.
Our pressure sustaining valves feature a patent-pending curved bridge design and allows for a lower opening pressure, higher flow rate, minimal pressure loss, no vibration, and rapid response.
| Inlet/Outlet Connections | 3" ANSI Flange |
|---|---|
| Outlet Pressure Range | 7-78 PSI |
| Maximum Operating Pressure | 142 PSI |
| Minimum Operating Pressure | 7 PSI |
| Min. Recommended Flow Rate | >4 GPM |
| Maximum Operating Temperature | 140° F |
| Material of Construction | GRP |
| Flow Coefficient (Kv) | 160 |
Availability:
In stock
SKU
RKPSV-GRP-3F
This control valve is made out of sturdy, durable, corrosion resistant, high-quality materials.
Features:
- Innovative water passage offers one of the highest flow coefficients in a diaphragm control valve.
- Polymeric valve with great durability and corrosion resistance.
- Reinforced diaphragm offers smooth operation, tight shut-off and no distortion.
- Simple and robust design involving 4 main parts.
- Manual override switch for manual operation of valve.
Curved Bridge Design Benefits:
- Lower Opening Pressure
- High Flow Capacity
- Minimum Pressure Loss
- No Vibration or Distortion
- Rapid Response
Principle of Operation
When the upstream pressure is lower than the set pressure, valve closes.
When the upstream pressure is equal or greater than desired set pressure, valve begins to open.
When the upstream pressure drops below set pressure, valve closes by pressurizing the control chamber above the diaphragm.
